Sulzer Statomix MSR Series Static Mixers

    Sulzer Mixpac Statomix MSR static mixers are used for machine dispensing of adhesives. These machines are often referred to as Meter Mix Dispense (MMD) systems. MSR series nozzles have ROTATING elements used to mix very low viscosity materials. MSR nozzles are attached to the dispensing machine using a retaining nut. MSR static mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants, for diverse applications.

    Detailed information for any static mixer can be found on a separate page, by clicking the part number.

    Part Number Style Elements ID (mm) ID (inch) Length (mm) Length (inch)
    MSR 06-12T Rotating 12 6.4 0.25 111.5 4.4
    MSR 08-12T Rotating 12 8.0 0.31 130 5.1
    MSR 10-12T Rotating 12 10.0 0.39 155 6.1
    MSR 13-12T Rotating 12 13.0 0.51 197 7.8

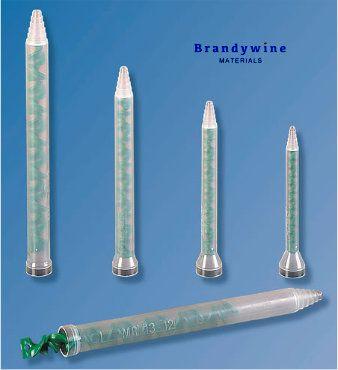

    Mixpac MSR Static Mixers

    image 021 statomix MSR static mixers2
