Sulzer Mixpac Static Mixer MCH 10-20D

Mixpac Sulzer static mixer MCH 10-20D is used to dispense adhesives from 200 ml, 400 ml, 600 ml and 1,500 ml AC series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a integral nut mounting method for attachment to two-component cartridges.

Static Mixer MCH 10-20D Specifications

Property Value Property Value
Product MCH 10-20D Element Color: White
Description Mixer, 10mm x 20 ELE., 1:1/2:1, (For "BSD" Ribbon Tip) Element Material PP
Old Product Number MC 10-20-A Housing Type Cylindrical
# of Elements: 20 Housing Material PP
ID* mm 10.0 Tip Style: Stepped Tip
ID* inch 0.39 Attach to Cartridge Retaining Nut
Length mm 215
Length inch 8.46

* inner diameter

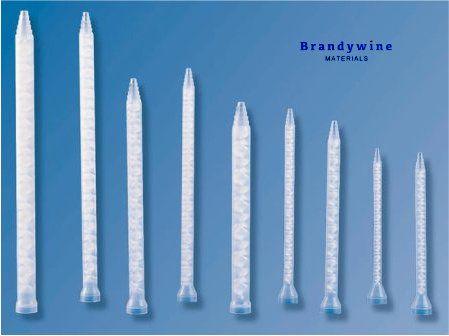

image 009 sulzer mixpac mch static mixer

Mixpac nozzle MCH 10-20D is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

Typical applications for dispensing adhesive with Sulzer static mixer MCH 10-20D include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
