Mixpac MFQX Series Static Mixers

    Sulzer Mixpac Quadro MFQX static mixers are used for dispensing adhesives from two part 200 and 400 ml plastic cartridges . Available ratios are 4:1 and 10:1. These nozzles are attached using a retaining nut . MFQX mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants.

    For Compatible Cartridges and Dispensers - Consult 2nd Table



    Detailed information for any static mixer can be found on a separate page, by clicking the part number.

    Part Number Old Part Number Elements ID (mm) ID (inch) Length (mm) Length (inch)
    MFQX 05-16L   16 5.3 0.21 101 4.0
    MFQX 05-24L   24 5.3 0.21 132 5.2
    MFQX 07-24T   24 7.5 0.30 137 5.4
    MFQX 08-24T   24 8.7 0.34 155 6.1
    MFQX 08-32D   32 8.7 0.34
    MFQX 10-24T   24 10.7 0.42 181 7.1

    MFQX Mixpac Mixers - Compatible Cartridges and Dispensers

    Cartridge* Volume (ml) Ratio Dispensing Gun** Type Brand
    AF 200-04-10-01 200 4:1 DM 200-04 Manual Mixpac
          DP 200-70-04 Pneumatic Mixpac
          A200LPMR Pneumatic COX
    AF 200-10-10-01 200 10:1 DM 200-10 Manual Mixpac
          DP 200-70-10 Pneumatic Mixpac
          A200LPMR Pneumatic COX
    AF 400-04-10-01 400 4:1 DM 400-10 Manual Mixpac
          DP 400-85-10 Pneumatic Mixpac
          A400LPMR Pneumatic COX
    AF 400-10-10-01 400 10:1 DM 400-10 Manual Mixpac
          DP 400-85-10 Pneumatic Mixpac
          A400LPMR Pneumatic COX

    * These are typical cartridges for a given volume and ratio. Many others are available

    ** These are typical dispensing guns for a given volume and ratio. Many others are available

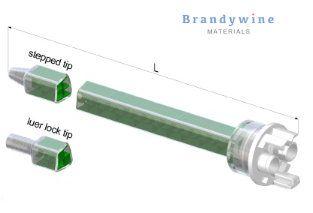

    Mixpac MFQX Static Mixers

    image 015 sulzer mixpac MFQX static mixers2
