Sulzer Mixpac MAH Series Static Mixers

Sulzer Mixpac MAH static mixers are used for dispensing adhesives from two-component  50 ml cartridges . Available ratios are 1:1 and 2:1. Theses nozzles are attached using a “bayonet style” connection. MAH static mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants, for diverse applications.

Note: For Compatible Cartridges and Dispensers - Consult 2nd Table

Part Number Old Part Number Elements ID (mm) ID (inch) Length (mm) Length (inch)
MAH 03-07S MA 3.0-07-S 7 3 0.12 33 1.3
MAH 03-13S MA 3.0-13-S 13 3 0.12 51 2
MAH 03-17S MA 3.0-17-S 17 3 0.12 62 2.5
MAH 04-13S MA 4.0-13-S 13 4 0.16 66 2.6
MAH 04-17S MA 4.0-17-S 17 4 0.16 82 3.2
MAH 05-07T MA 5.4-07-S 7 5.4 0.21 56 2.2
MAH 05-13T MA 5.4-13-S 13 5.4 0.21 85 3.3
MAH 05-17T MA 5.4-17-S 17 5.4 0.21 104 4.1
MAH 0517-0413T MA 0517-0413 30 5.4 - 4.0 .21-.16 149 5.9
MAH 05-21T MA 5.4-21-S 21 5.4 0.21 124 4.9
MAH 06-12T MA 6.3-12-S 12 6.3 0.25 97 3.8
MAH 06-17T MA 6.3-17-S 17 6.3 0.25 128 5
MAH 06-21L MA 6.3-21-L 21 6.3 0.25 152 6
MAH 06-21T MA 6.3-21-S 21 6.3 0.25 153 6

MAH Mixpac Mixers - Compatible Cartridges and Dispensers

Cartridge* Volume (ml) Ratio Dispensing Gun** Type Brand
AC 200-01-10-01 200 1:1 DM 200-01 Manual Mixpac
      DP 200-70-01 Pneumatic Mixpac
      A100LP/1 Pneumatic COX
AC 200-02-10-01 200 2:1 DM 200-01 Manual Mixpac
      DP 200-70-01 Pneumatic Mixpac
      A200LPMR Pneumatic COX
AC 400-01-10-01 400 1:1 DM 400-01 Manual Mixpac
      DP 400-85-01 Pneumatic Mixpac
      A400LP/1:2 Pneumatic COX
AC 400-02-10-01 400 2:1 DM 400-01 Manual Mixpac
      DP 400-85-01 Pneumatic Mixpac
      A400LP/1:2 Pneumatic COX

* These are typical cartridges for a given volume and ratio. Many others are available

** These are typical dispensing guns for a given volume and ratio. Many others are available

Sulzer Mixpac MAH Static Mixers - Nozzles

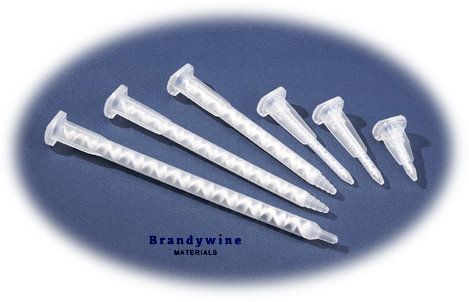

Image 001 Mixpac MAH Static Mixers

Sulzer Mixpac MAH Static Mixers - Nozzles

Image 002 Sulzer MAH nozzles
