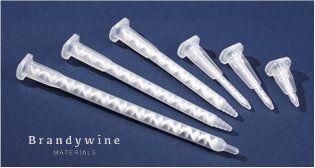

Sulzer Mixpac Static Mixer MAH 05-13D
Mixpac Sulzer static mixer MAH 05-13D is used to dispense adhesives from 50 ml AA series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple twist lock mounting method for attachment to two-component cartridges.
Static Mixer MAH 05-13D Specifications
|Product||MAH 05-13D||Element Color:||White|
|Description||Mixer, 5mm x 7 ELE., 1:1/2:1, Straight outlet||Element Material||PP|
|Old Product Number||N/A||Housing Type||Cylindrical|
|# of Elements:||13||Housing Material||PP|
|ID* mm||5.4||Tip Style:||Straight Tip|
|ID* inch||0.21||Attach to Cartridge||Bayonet|
* inner diameter
Mixpac nozzle MAH 05-13D is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MAH 05-13D include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
