Sulzer Mixpac MAQ 05-24L Static Mixer

    Mixpac Sulzer static mixer MAQ 05-24L is used to dispense adhesives from 50 ml AA series cartridges - both 1:1 and 2:1 ratios.  These plastic nozzles are disposable and feature a simple twist lock mounting method for attachment to two-component cartridges.

    Static Mixer MAQ 05-24L Specifications

    Property Value Property Value
    Product MAQ 05-24L Element Color: Green
    Description Mixer, 5mm, 24 ELE Bayonet Luer/Step 1:1, 2:1 Element Material PP
    Old Product Number 300-026 Housing Type Square
    # of Elements: 24 Housing Material PP
    ID* mm 5.3 Tip Style: Stepped Tip
    ID* inch 0.21 Attach to Cartridge Bayonet
    Length mm 115
    Length inch 4.53

    * inner diameter

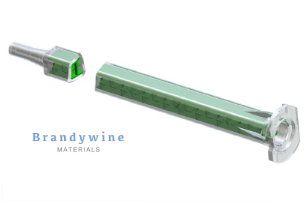

    Image 004 Sulzer MAQ Nozzle

    Mixpac nozzle MAQ 05-24L is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

    Typical applications for dispensing adhesive with Sulzer static mixer MAQ 05-24L include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
