Mixpac MBH Series Static Mixers

Mixpac MBH static mixers are used for dispensing adhesives from two-component 25ml, 50ml,and 75ml plastic cartridges . Available ratios are 1:1, 3:2 and 2:1. These nozzles are attached using an “interlock style” connection. Mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants, for diverse applications.

For Compatible Cartridges and Dispensers - Consult 2nd Table

Detailed information for any static mixer can be found on a separate page, by clicking the part number.

Part Number	Old Part Number	Elements	ID (mm)	ID (inch)	Length (mm)	Length (inch)
MBH 03-12D		12	3.2	0.13	58.0	2.3
MBH 03-12S	MB 3.2-12-S	12	3.2	0.13	63.5	2.5
MBH 03-16D		16	3.2	0.13	70.7	2.8
MBH 03-16L		16	3.2	0.13	75.8	3.0
MBH 03-16S	MB 3.2-16-S	16	3.2	0.13	76.5	3.0
MBH 04-12D		12	4.2	0.17	69.5	2.7
MBH 04-16D		16	4.2	0.17	86.2	3.4
MBH 04-16S	MB 4.0-16-S	16	4.2	0.17	96.0	3.8
MBH 05-06T	MB 5.4-6-S	6	5.4	0.21	59.3	2.3
MBH 05-12D		12	5.4	0.21	82.5	3.2
MBH 05-14D		14	5.4	0.21	111.8	4.4
MBH 05-16T	MB 5.4-16-S	16	5.4	0.21	111.8	4.4
MBH 05-20T	MB 5.4-20-S	20	5.4	0.21	132.8	5.2
MBH 06-11D		11	6.5	0.26	88.5	3.5
MBH 06-16T	MB 6.5-16-S	16	6.5	0.26	131.0	5.2
MBH 06-20T	MB 6.5-20-S	20	6.5	0.26	157.0	6.2
MBH 07-11D		11	7.5	0.30	91.5	3.6

MBH Mixpac Mixers - Compatible Cartridges and Dispensers

Cartridge*	Volume (ml)	Ratio	Dispensing Gun**	Type	Brand
AB 025-01-10-01	25	1:1	DMA 51-00-10	Manual	Mixpac
AB 050-01-10-01	50	1:1	DMA 51-00-10	Manual	Mixpac
			A50/1:2	Pneumatic	Cox
AB 050-02-10-01	50	2:1	DMA 51-00-10	Manual	Mixpac
			A50/1:2	Pneumatic	Cox
AB S50-01-10-01	50	1:1	DS 53-01-00	Manual	Mixpac
			A50S/1:2:3	Pneumatic	Cox
AB S50-01-10-01	50	2:1	DS 53-01-00	Manual	Mixpac
			A50S/1:2:3	Pneumatic	Cox
AB S50-01-10-01	50	3:2	DS 53-01-00	Manual	Mixpac
			A50S/1:2:3	Pneumatic	Cox
AB S50-02-10-01	50	2:1	DS 53-01-00	Manual	Mixpac
			A50S/10	Pneumatic	Cox

* These are typical cartridges for a given volume and ratio. Many others are available

** These are typical dispensing guns for a given volume and ratio. Many others are available

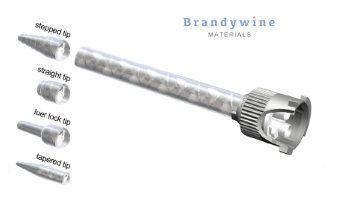

Mixpac MBH Static Mixers

image 005 sulzer mixpac MBH static mixer
