Sulzer Mixpac Static Mixer MAHX 05-17T

    Mixpac Sulzer static mixer MAHX 05-17T is used to dispense adhesives from 50 ml AA series cartridges - both 4:1 and 10:1 ratios.  These plastic nozzles are disposable and feature a simple twist lock mounting method for attachment to two-component cartridges.

    Static Mixer MAHX 05-17T Specifications

    Property Value Property Value
    Product MAHX 05-17T Element Color: Orange
    Description Mixer, 5mm x 17 ELE., 4:1/10:1 Element Material PP
    Old Product Number MX 5.4-17-S Housing Type Cylindrical
    # of Elements: 17 Housing Material PP
    ID* mm 5.4 Tip Style: Stepped Tip
    ID* inch 0.21 Attach to Cartridge Bayonet
    Length mm 103
    Length inch 4.07

    * inner diameter

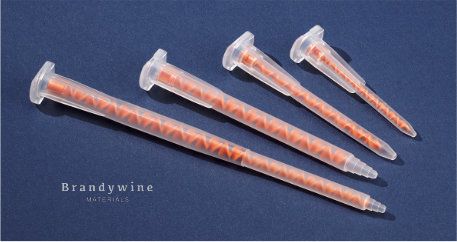

    Image 003 Sulzer Mixpac MAHX Mixers

    Mixpac nozzle MAHX 05-17T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

    Typical applications for dispensing adhesive with Sulzer static mixer MAHX 05-17T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
