TAH 280AN-226 / Nordson 7701818 Plastic Turbo Square Static Mixer (Nozzle)

Description: Plastic Turbo Square Disposable Static Mixer (Nozzle)

Nordson TAH Turbo Mixer™ 7701818 has a square geometry which provides superior mixing, allowing the operator to be closer to the application, and reducing the wasted material within the mixer. Nozzle 7701818 has a 7/8 - 9 Integral Nut.

Static Mixer 7701818 Specifications

Property Value Property Value
Product 7701818 Element Material Polypropylene
Old Product Number TAH (280AN-226) Housing Material Polypropylene
# of Elements: 26 Tip Style Short Barb
ID inch 0.442 Retained (ml) 17
ID mm 11.2 Inlet 7/8 - 9 Integral Nut
Length inch 9 Max Housing Pressure*
Length cm 22.9 Max Housing Pressure**

*psi at 75°F
**bar at 30°C

Nordson (TAH) static mixer 7701818 is used for mixing epoxy, silicone, acrylic, methacrylate, polyurethane, polysulfide and other adhesives as well as sealants and coatings. Typical applications include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.

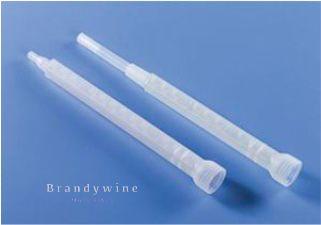

10 Nordson series 280 square turbo bell static mixer nozzle
