Sulzer Mixpac Two-Component DM 200-10 Manual Dispensing Gun
Specifications
- Cartridge capacity: 200mL (nominal)
- Cartridge ratio: 10:1
- Designed specifically for Mixpac C and F System Cartridges
- Weight: 1.35kg / 2.98lbs

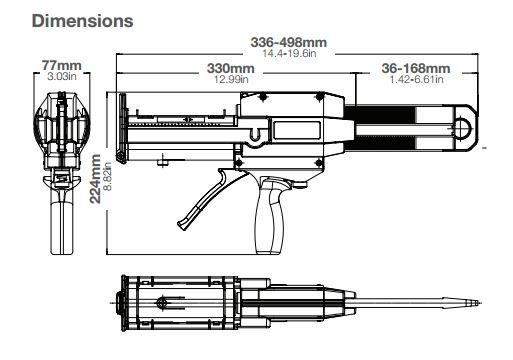

- Length: 366mm / 14.4in
- Maximum Thrust: 5.2kN ( 520kg), 3.7mm stroke·
- Tool material: cast aluminum and reinforced nylon
Product Advantages
- Cartridge snap fit
- High gear ratio
- One-hand-operation
- Long-life technology
- Warranty up to 2 years
Customer Benefits
- Easy cartridge positioning and fixation
- Ergonomic
- High precision and dispensing accuracy
- Can easily be converted into different ratios with the proper plunger
- Gives you long worry-free performance
Cartridge Compatibility Table
| Sulzer Mixpac DM 200-01 Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material |
| AC 200-01-10-01 | AC** | 200 | 1:1 | PP |
| AC 200-01-10-04 | AC** | 200 | 1:1 | PP |
| AC 200-01-30-01 | AC** | 200 | 1:1 | PA |
| AF 200-01-10-01 | AF*** | 200 | 1:1 | PP |
| AF 200-01-10-05 | AF*** | 200 | 1:1 | PP |
| AF 200-01-30-01 | AF*** | 200 | 1:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| ** For AC series cartridge, the "-01" variants come with UM 13-PP, retaining nut for attaching 13mm ID mixers and AC series cartridges "-04" variants come with UM 10-PP, retaining nut for attaching 10mm and smaller ID mixers | ||||
| *** For AF series cartridges "-01 variants come with short legged cap" and AF series cartridges "-05 variants come with long legged cap" | ||||
