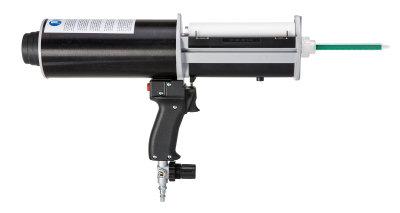

Mixpac Two-Component DP 400-85-01 Pneumatic Dispensing Gun
Sulzer Mixpac DP 400-85-01 Pneumatic Dispenser for Epoxy Dispensing

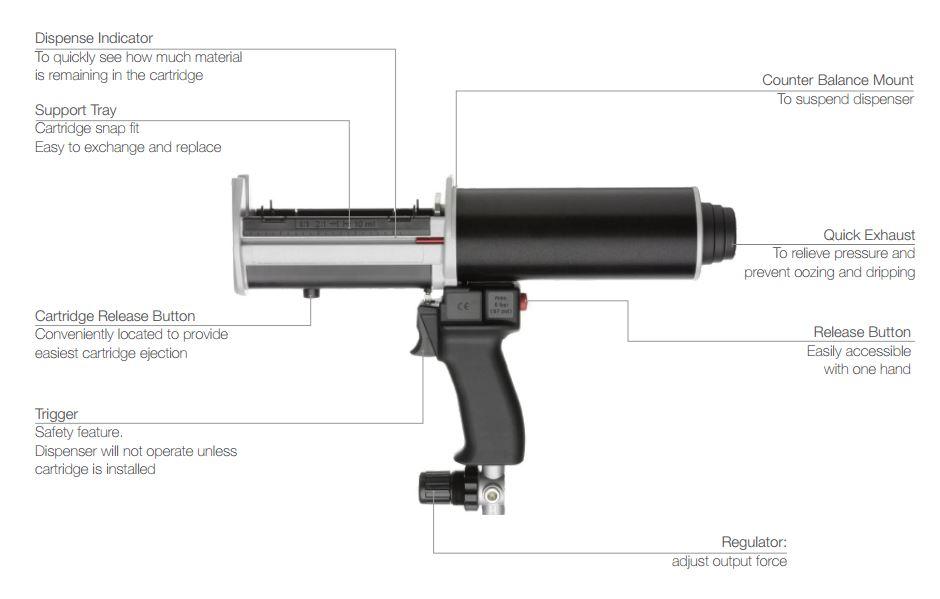

Sulzer Mixpac Two-Component Pneumatic Dispensing Gun
Specifications
- Cartridge capacity: 400mL (nominal)
- Cartridge ratio: 1:1 and 2:1
- Designed specifically for Mixpac C and F System Cartridges
- Weight 2.18kg / 4.81lbs
- Length: 402mm / 15.8in
- Maximum Thrust: 3.2kN
- Tool material: cast aluminum and reinforced nylon
- Cartridge capacity: 400mL
- Air inlet: G 1/4in
- Max operating pressure: 6.8 bar
Cartridge Compatibility Table
| Sulzer Mixpac DP 400-85-01 Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material**** |
| AC 400-01-10-04 | AC** | 400 | 1:1 | PP |
| AC 400-01-30-04 | AC** | 400 | 1:1 | PA |
| AF 400-01-10-05 | AF*** | 400 | 1:1 | PP |
| AF 400-01-20-05 | AF*** | 400 | 1:1 | PBT |
| AC 400-02-10-01 | AC** | 400 | 2:1 | PP |
| AC 400-02-10-04 | AC** | 400 | 2:1 | PP |
| AF 400-02-10-05 | AF*** | 400 | 2:1 | PP |
| AF 400-02-30-05 | AF*** | 400 | 2:1 | PA |
| NOTES: * Other cartridge variants are available. Please contact ** For AC series cartridge, the "-01" variants come with UM 13-PP, retaining nut for attaching 13mm ID mixers and AC series cartridges "-04" variants come with UM 10-PP, retaining nut for attaching 10mm and smaller ID mixers *** For AF series cartridges "-01 variants come with short legged cap" and AF series cartridges "-05 variants come with long legged cap" **** PP = polypropylene, PA = Nylon. PBT = polyester |
||||
