Mixpac MKH Series Static Mixers

Sulzer Mixpac MKH static mixers are used for dispensing adhesives from two part 2.5, 5.0 and 10.0 ml dual plastic KK-series syringes.. All systems are 1:1 ratio. Theses nozzles are attached using an “interlock style” connection. MKH static mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants, for diverse applications.

For Compatible Cartridges and Dispensers - Consult 2nd Table



Detailed information for any static mixer can be found on a separate page, by clicking the part number.

Part Number Old Part Number Elements ID (mm) ID (inch) Length (mm) Length (inch)
MKH 02-08D ML 2.5-08-D-IN 8 2.5 0.10 33.40 1.3
MKH 02-12D ML 2.5-12-D-IN 12 2.5 0.10 46.20 1.8
MKH 02-12S ML 2.5-12-S-IN 12 2.5 0.10 49.70 2.0
MKH 02-16S ML 2.5-16-S-IN 16 2.5 0.10 59.70 2.4
MKH 03-12D ML 3.2-12-D-IN 12 3.2 0.13 56.00 2.2
MKH 03-12S ML 3.2-12-S-IN 12 3.2 0.13 61.00 2.4
MKH 03-16S ML 3.2-16-S-IN 16 3.2 0.13 74.00 2.9

MKH Mixpac Mixers - Compatible Cartridges and Dispensers

Cartridge* Volume (ml) Ratio Dispensing Gun** Type Brand
KK 002-01-10-01 2.5 1:1 Used with a Plunger Manual Mixpac
KK 005-01-10-01 5.0 1:1 Used with a Plunger Manual Mixpac
KK 010-01-10-01 10.0 1:1 Used with a Plunger Manual Mixpac

* These are typical cartridges for a given volume and ratio. Many others are available

** These are typical dispensing guns for a given volume and ratio. Many others are available

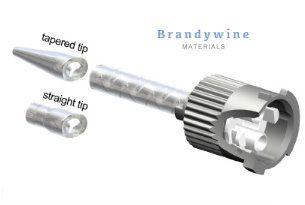

Mixpac MKH Static Mixers

image 017 sulzer mixpac MKH static mixers2
